Chrome Forward Control Linkage Kit, 1" Handlebar Switch with Left Clutch Lever Right Hydraulic Brake Master Cylinder 25mm Hand Grips Compatible with 96-03 Harley Sportster XL883 XL1200
4.8 (122 items)
Limited Time SaleUS$80.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215538954 | Release Date | 2026/04/12 | List Price | US$54.00 | Model Number | 215538954 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Packet Condition: Brand New 100% Packet contains: * Set of Forward Controls Complete Peg Levers Linkage with Set of Mounting Accessories * 1 Pair Handlebar Headlight Horn Turn Signal Light Switch with Harness * 1x 1 inch Left Clutch Lever and 1x 1 inch Right Hydraulic Brake Master Cylinder * Left and Right Hand Grips * Items Weight: 5050g Compatible with 1996-2003 Harley Sportster XL883 XL1200 with 1'' inch (25 mm) Handlebar. * These controls will not work on cycles with an engine guard, 2-in-1 exhaust or crash bars. * Instruction is not included, may need OEM accessories for installation Description * Dimension: -- Forward Controls: As the picture shown -- Headlight Horn Turn Signal Light Switch: Diameter Of Hole: 1'' (25 mm) - Cable Length: 29'' (73 cm) -- Left Clutch Lever + Right Hydraulic Brake Master Cylinder: Handlebar: 1" (25 mm) - Mirror Mounting Hole: 10 mm - Bore Size: 14 mm (As the picture shown) -- Handle Grips: Left (Bar side) Hole / Right (Throttle Side) Hole:1" (25mm) - Outer Diameter: 1 1/2" (3.8cm) - Overall Length: Left( bar side): 5" (12.7cm) / Right(Throttle Side): 5 1/2"(14cm) * Voltage: DC 12V * Handle Bar Switch -- Left side: Switch for Horn, High/Low beam Headlight and Left Turn Signal -- Right side: Switch for Kill, Ignition Start and Right Turn Signal * Made of Billet CNC Aluminum + Rubber, Rubber, Aluminum Alloy, Plastic NOTICE: * Please check measurement for your handlebar to make sure it fits for your application. * Please check connector (as the image shown) to make sure it fit perfectly with your OEM connector, minor modification may need
- Compatible with 1996-2003 Harley Sportster XL883 XL1200 with 1'' inch (25 mm) Handlebar.
- Aftermarket headlight high/low beam Horn Turn Signal Light On/Off Switch. Compact size. All-in-1 design. Built in switch control.
- These Forward Controls Move Your Feet Approximately 12" (30cm) Forward Complete Assemblies For Both Brake And Shifter Sides
- Adjustable Design for the Perfect Lever Position Lever Surface Shape Designed for A Comfortable and Smooth Feel. Improves the Sensitivity of Your Brake for Stopping Power and Driving Safety

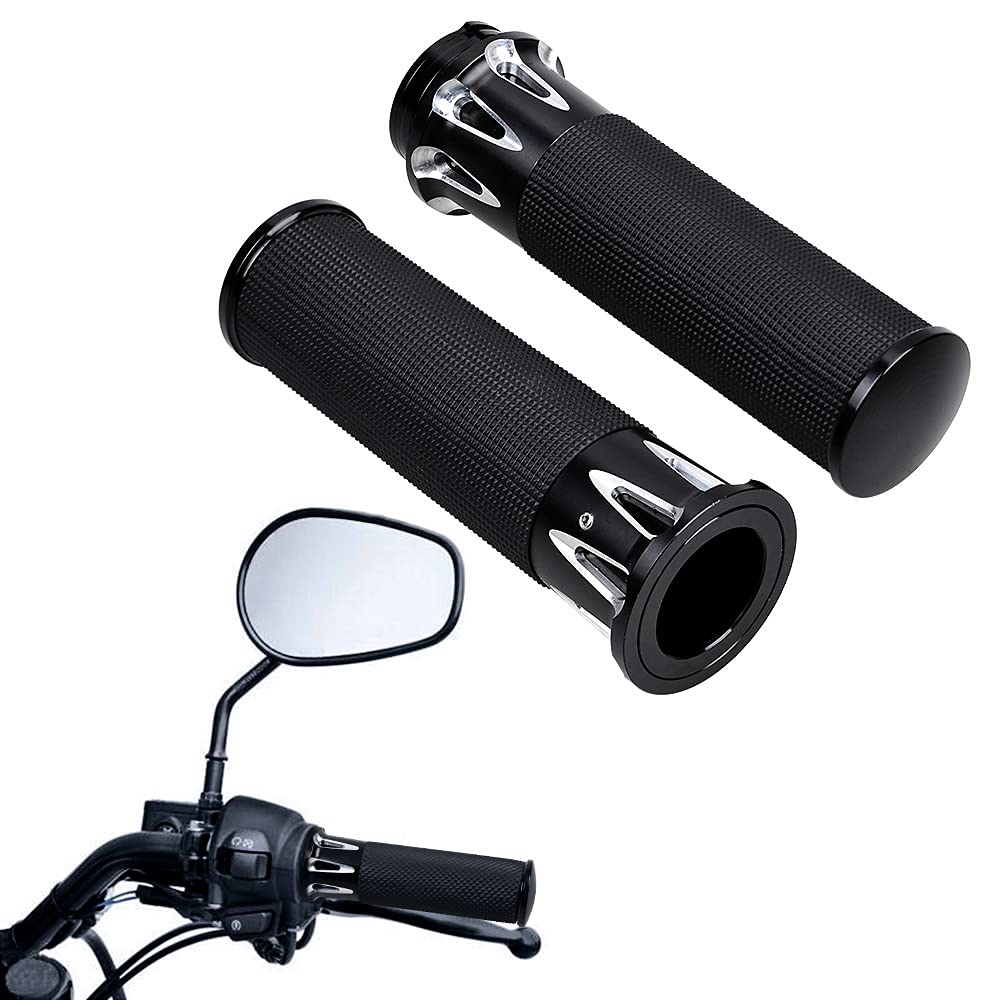

- Handle Grips with the Machined Slots And Narrow Rubber Bands Offer Plenty Of Traction when driving in every weather. Giving The Rider A Very Comfortable Feel As Well As Better Speed Control
| Color | Chrome |
|---|---|
| Model | M05-064+E08-048+M25-127+M04-108-NM-1-YW |
| Terminal | Through Hole |
| Brand Name | NAAMOTOMOX |
| Unit Count | 4.0 Count |
| Item Weight | 5050 Grams |
| Switch Type | Ignition Switch |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | amopacorp |
| Material Type | Billet CNC Aluminum, Rubber |
| Mounting Type | Handlebar Mount |
| Connector Type | Clamp |
| Current Rating | 2.5 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 29 x 1 x 2.5 inches |
| Number of Items | 1 |
| Contact Material | Aluminum |
| Operating Voltage | 12 Volts (DC) |
| Number of Positions | 3 |
| Lower Temperature Rating | 40 Degrees Celsius |
| Upper Temperature Rating | 60 Degrees Celsius |
| International Protection Rating | IP67 |
